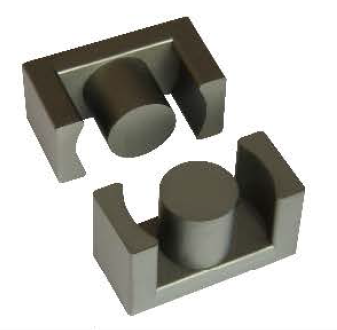

EC(EER ETD)型 磁芯
EC(EER ETD) CORES
型號 Type |
尺寸 Dimension(mm) | 重量 (g) | |||||
A | B | C | D | E min | F | ||
EC19/23 | 20.0±0.5 | 11.80±0.20 | 7.40±0.30 | 7.40±0.30 | 14.80 | 7.90±0.20 | 13.0 |
EC25/10 | 25.4±0.6 | 5.1±0.30 | 9.7±0.30 | 8.15±0.30 | 18.20 | 3.40±0.30 | 10.8 |
EC28/19(H) | 28.5±0.6 | 9.70±0.20 | 11.20±0.30 | 9.70±0.30 | 21.30 | 5.20±0.30 | 24.2 |
EC2820 | 28.5±0.6 | 10.00±0.15 | 11.20±0.30 | 9.70±0.30 | 21.30 | 6.50±0.20 | 24.0 |
EC28/28 (H) | 28.5±0.6 | 14.00±0.30 | 11.20±0.30 | 9.70±0.30 | 21.30 | 9.70±0.30 | 30.8 |
EC28/28B | 30.5±0.5 | 14.60±0.50 | 11.40±0.25 | 9.90±0.25 | 23.50 | 10.30±0.30 | 31.5 |
EC28/34 | 28.5±0.5 | 17.00±0.40 | 11.20±0.30 | 9.70±0.30 | 21.30 | 12.50±0.20 | 35.0 |
EC29/28 | 29.8±0.6 | 14.00±0.40 | 11.20±0.30 | 9.70±0.30 | 22.00 | 9.85±0.30 | 31.1 |
ETD29/32 | 29.8±0.6 | 15.80±0.30 | 9.50±0.30 | 9.50±0.30 | 22.00 | 11.20±0.30 | 31.0 |
EC29/34 | 29.8±0.6 | 17.00±0.30 | 11.20±0.30 | 9.70±0.30 | 22.00 | 12.50±0.30 | 36.0 |
EC29/34A | 29.6±0.6 | 17.1±0.3 | 11.4±0.3 | 9.9±0.25 | 22.00 | 12.7±0.3 | 35.5 |
EC3013S | 30.0±0.6 | 6.70±0.20 | 20.00±0.30 | 11.0±0.20 | 26.4±0.5 | 4.0±0.20 | 24.3 |
EC30/16 (H) | 30.0±0.5 | 8.00±0.20 | 20.00±0.30 | 11.00±0.20 | 26.0±0.4 | 5.30±0.20 | 31.6 |
EC30/19 | 30.0±0.5 | 9.40±0.25 | 20.30±0.30 | 13.20±0.25 | 25.30 | 6.60±0.20 | 38.7 |
EC3028 | 30.5±0.6 | 14.00±0.30 | 11.50±0.30 | 9.90±0.30 | 23.50 | 9.85±0.30 | 31.4 |
EC3038 | 30.5±0.6 | 19.10±0.20 | 11.50±0.30 | 9.90±0.30 | 23.50 | 14.40±0.30 | 40.6 |
EC31/13 | 31.50±0.50 | 6.35±0.15 | 20.3±0.3 | 13.3±0.2 | 27.0±0.5 | 3.7±0.15 | 31.8 |
EC31/20 (H) | 31.7±0.5 | 10.20±0.40 | 20.30±0.30 | 13.30±0.50 | 26.50 | 7.50±0.30 | 40.6 |
EC3118W | 31.0±0.50 | 8.90±0.15 | 12.40±0.20 | 11.0±0.20 | 24.0±0.50 | 5.15±0.15 | 23.7 |
EC31/24N (H) | 31.5±0.5 | 12.20±0.20 | 20.30±0.30 | 13.30±0.30 | 26.9±0.4 | 9.10±0.20 | 46.1 |
EC3335 (H) | 33.0±0.6 | 17.30±0.30 | 14.00±0.25 | 12.50±0.25 | 24.70 | 12.80±0.25 | 54.0 |
EC3435B (H) | 34.2±0.8 | 17.30±0.20 | 10.80±0.30 | 10.80±0.30 | 25.10 | 12.10±0.30 | 43.0 |
EC3435K (H) | 35.2±0.8 | 17.30±0.20 | 10.80±0.30 | 10.80±0.30 | 26.60 | 12.10±0.30 | 43.4 |
EC35/31 (H) | 35.3±0.7 | 15.20±0.30 | 11.20±0.30 | 11.10±0.30 | 26.00 | 10.10±0.30 | 41.8 |
EC35/42 (H) | 35.3±0.7 | 21.20±0.30 | 11.30±0.25 | 11.20±0.30 | 25.60 | 15.20±0.30 | 55.8 |
EC35/43 (H) | 35.3±0.5 | 21.50±0.30 | 11.30±0.30 | 11.20±0.30 | 26.00 | 15.50±0.30 | 56.7 |
EC36/13 | 36.0±0.6 | 6.35±0.20 | 20.30±0.30 | 13.30±0.30 | 31.0±0.6 | 3.45±0.20 | 35.0 |
EC36/18 | 36.0±0.6 | 9.55±0.20 | 20.30±0.30 | 13.30±0.30 | 31.0±0.6 | 6.90±0.20 | 41.2 |
EC36/43 | 36.2±0.5 | 21.60±0.40 | 11.30±0.30 | 11.30±0.30 | 27.50 | 15.60±0.30 | 57.0 |
EC39/40 (H) | 39.1±0.9 | 20.20±0.40 | 12.50±0.30 | 12.50±0.30 | 30.1±0.8 | 14.80±0.40 | 64.0 |
EC39/42 (H) | 39.2±0.9 | 21.00±0.30 | 12.50±0.30 | 12.50±0.30 | 30.1±0.8 | 16.00±0.30 | 65.0 |
EC39/43 (H) | 39.2±0.9 | 21.50±0.40 | 12.50±0.30 | 12.50±0.30 | 30.1±0.8 | 16.30±0.30 | 66.0 |
EC39/44 (H) | 39.2±0.9 | 22.30±0.30 | 12.50±0.30 | 12.50±0.30 | 30.1±0.8 | 17.30±0.30 | 68.0 |
EC39/45 (H) | 39.2±0.9 | 22.70±0.40 | 12.50±0.30 | 12.50±0.30 | 30.1±0.8 | 17.40±0.40 | 69.0 |
EC40-15 | 40.0±1.0 | 21.50±0.30 | 15.00±0.30 | 14.00±0.30 | 30.20 | 15.40±0.30 | 85.0 |
EC40/42 (H) | 40.0±1.0 | 21.00±0.50 | 13.30±0.30 | 13.30±0.30 | 28.75 | 14.50±0.40 | 77.6 |
EC40/45 (H) | 40.0±1.0 | 22.50±0.50 | 13.30±0.30 | 13.30±0.40 | 29.00 | 15.90±0.40 | 83.4 |
EC40/46 (H) | 40.0±1.0 | 23.00±0.40 | 13.30±0.30 | 13.30±0.40 | 29.00 | 16.40±0.30 | 86.1 |
EC40/48 (H) | 40.0±1.0 | 24.00±0.50 | 13.30±0.30 | 13.30±0.40 | 28.00 | 17.00±0.30 | 88.7 |
EC41/44 (H) | 41.7±1.0 | 22.10±0.40 | 13.30±0.30 | 13.30±0.40 | 29.50 | 15.80±0.30 | 84.2 |
EC41/45 (H) | 41.5±1.0 | 22.50±0.30 | 13.30±0.30 | 13.30±0.30 | 29.50 | 15.80±0.30 | 85.4 |
EC4215 | 42.0±0.7 | 22.50±0.30 | 15.30±0.30 | 15.30±0.30 | 30.80 | 15.50±0.30 | 108.4 |
EC421541 (H) | 42.0±0.7 | 20.50±0.30 | 14.80±0.30 | 14.80±0.30 | 31.60 | 14.80±0.30 | 88.6 |
EC42/33/20 (H) | 42.0±1.0 | 16.50±0.30 | 19.60±0.40 | 17.25±0.30 | 32.3±0.8 | 10.50±0.30 | 102.4 |
EC42/42/20 (H) | 42.0±1.0 | 21.60±0.30 | 19.60±0.40 | 17.25±0.30 | 32.8±0.5 | 15.65±0.25 | 122.8 |
EC42/45 | 42.0±0.6 | 22.40±0.20 | 15.50±0.25 | 15.50±0.25 | 29.40 | 15.40±0.30 | 104.9 |
EC4347 | 43.3±0.6 | 23.80±0.30 | 15.00±0.30 | 15.00±0.30 | 32.00 | 16.80±0.30 | 106.0 |
EC4445 | 44.0±1.0 | 22.30±0.20 | 14.80±0.40 | 14.80±0.40 | 33.3±0.8 | 16.50±0.40 | 96.0 |
EC49/50 (H) | 49.0±1.0 | 25.00±0.30 | 16.30±0.40 | 16.30±0.40 | 36.40 | 18.30±0.40 | 132.8 |
EC49/54 | 49.0±1.0 | 27.20±0.30 | 17.00±0.20 | 17.00±0.20 | 36.40 | 18.80±0.40 | 159.2 |
EC53/46 (H) | 53.2±0.8 | 23.20±0.30 | 21.50±0.30 | 20.00±0.30 | 38.70 | 16.30±0.30 | 190.0 |
EC54/19 | 54.2±1.0 | 27.50±0.30 | 18.90±0.40 | 18.90±0.40 | 40.50 | 20.20±0.30 | 192.0 |
EC59/62 | 59.8±1.3 | 31.00±0.50 | 21.65±0.40 | 21.65±0.40 | 43.60 | 22.40±0.50 | 290.0 |
型號 Type | 有效參數 Effective parameter | AL值 AL(nH/N2) | |||
C1 (mm-1) | Le (mm) | Ae (mm2) | Ve (mm3) | GP4 | |
EC19/23 | 1.020 | 49.60 | 45.30 | 2230 | 1450±25% |
EC25/10 | 0.650 | 31.07 | 47.77 | 1484 | 2550±25% |
EC28/19 | 0.640 | 47.45 | 73.80 | 4421 | 2600±25% |
EC2820 | 0.600 | 49.80 | 73.80 | 4008 | 2500±25% |
EC28/28 | 0.850 | 64.70 | 75.30 | 5837 | 2500±25% |
EC28/28B | 0.900 | 69.65 | 76.90 | 6219 | 2800±25% |
EC28/34 | 1.030 | 76.15 | 73.80 | 6735 | 2400±25% |
EC29/28 | 0.890 | 62.25 | 73.86 | 5946 | 2600±25% |
ETD29/32 | 1.000 | 71.55 | 70.84 | 5851 | 2600±25% |
EC29/34 | 1.040 | 76.85 | 73.86 | 7034 | 2100±25% |
EC29/34A | 1.01 | 77.75 | 76.94 | 6793 | 2500±25% |
EC3013S | 0.363 | 39.00 | 107.20 | 4185 | |
EC30/16 | 0.554 | 52.70 | 94.98 | 5094 | 4300±25% |
EC30/19 | 0.426 | 58.30 | 136.77 | 6475 | 5600±25% |
EC3028 | 0.780 | 66.66 | 84.00 | 5599 | |
EC3038 | 0.990 | 85.68 | 84.00 | 7197 | |
EC3113 | 0.33 | 39.67 | 120.35 | 4774.3 | 6000±25% |
EC31/20 | 0.454 | 63.15 | 138.85 | 7141 | 4400±25% |
EC3118W | 0.480 | 50.30 | 93.60 | 4703 | 2900±25% |
EC31/24N | 0.503 | 69.95 | 138.85 | 8191 | 4660±25% |
EC3335 | 0.669 | 82.15 | 122.65 | 10272 | 3400±25% |
EC3435B | 0.867 | 79.40 | 91.56 | 8304 | 2400±25% |
EC3435K | 0.878 | 80.40 | 91.56 | 8417 | 2800±25% |
EC35/31 | 0.743 | 71.95 | 96.71 | 8090 | 3100±25% |
EC35/42 | 0.918 | 92.05 | 100.23 | 11166 | 2700±25% |
EC35/43 | 0.934 | 93.65 | 100.23 | 11151 | 2800±25% |
EC36/13 | 0.370 | 51.45 | 138.85 | 5897 | 5600±25% |
EC36/18 | 0.469 | 65.25 | 138.85 | 7190 | 5000±25% |
EC36/43 | 0.953 | 95.55 | 100.23 | 11103 | 2500±25% |
EC39/40 | 0.772 | 94.75 | 122.65 | 12340 | 2600±25% |
EC39/42 | 0.818 | 100.35 | 122.65 | 12465 | 2800±25% |
EC39/43 | 0.827 | 101.55 | 122.65 | 12802 | 2800±25% |
EC39/44 | 0.860 | 105.55 | 122.65 | 13079 | 2800±25% |
EC39/45 | 0.863 | 105.95 | 122.65 | 13420 | 2800±25% |
EC40-15 | 0.640 | 99.10 | 153.80 | 17737 | 4000±25% |
EC40/42 | 0.672 | 93.40 | 138.85 | 15282 | 3600±25% |
EC40/45 | 0.714 | 99.25 | 138.85 | 16090 | 3500±25% |
EC40/46 | 0.729 | 101.25 | 138.85 | 16375 | 3500±25% |
EC40/48 | 0.739 | 102.65 | 138.85 | 17595 | 3650±25% |
EC41/44 | 0.715 | 99.35 | 138.35 | 16532 | 3500±25% |
EC41/45 | 0.715 | 99.35 | 138.85 | 16827 | 4200±25% |
EC4215 | 0.546 | 100.45 | 138.76 | 20005 | 4000±25% |
EC42/33/20 | 0.355 | 82.92 | 233.58 | 18776 | 6800±25% |
EC42/42/20 | 0.445 | 104.00 | 233.58 | 21757 | 5500±25% |
EC42/45 | 0.523 | 98.75 | 188.59 | 20938 | 5000±25% |
EC4347 | 0.610 | 107.20 | 176.00 | 20256 | 4000±25% |
EC4445 | 0.620 | 106.70 | 171.94 | 18454 | 3500±25% |
EC49/50 | 0.550 | 115.90 | 211.00 | 24416 | 4200±25% |
EC49/54 | 0.529 | 120.10 | 226.85 | 30578 | 4500±25% |
EC53/46 | 0.363 | 114.10 | 314.00 | 36043 | 6400±25% |
EC54/19 | 0.480 | 130.58 | 271.20 | 35414 | 5000±25% |
EC59/62 | 0.391 | 144.00 | 367.94 | 54465 | 6500±25% |
