產品展示

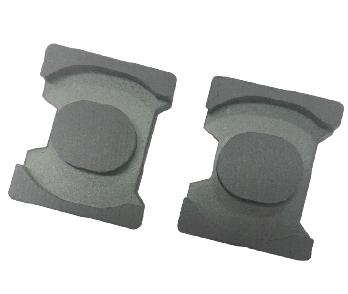

ATQ 型 磁芯
文件下載:
ATQ型 磁芯
ATQ CORES
型號 | 圖例 | A | B | C1 | C2 | C3 | D1 | D2 | D3 | E | F | G | 重量 |

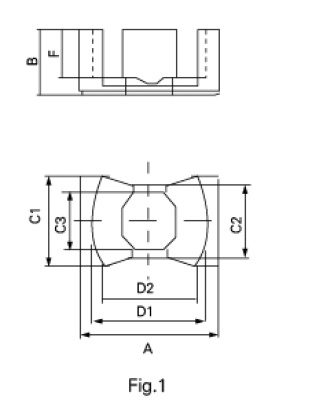

ATQ21 | Fig.1 | 21.0±0.5 | 8.90±0.2 | 13.0±0.5 | 10.6±0.5 | 8.2±0.25 | 17.2±0.5 | 14.4±0.5 | 8.20±0.25 | 6.5±0.15 | 15.0 | ||

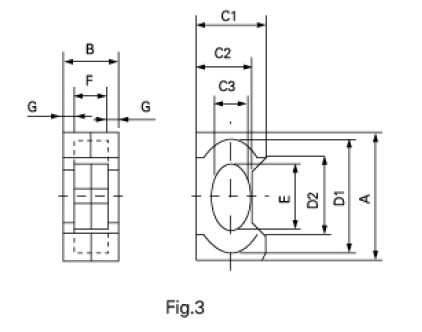

ATQ23.7 | Fig.3 | 23.7±0.4 | 14.6±0.2 | 17.8±0.3 | 14.7±0.4 | 9.6±0.25 | 21.0±0.4 | 13.4 MIN | 12.2±0.25 | 8.6±0.3 | 3.0±0.15 | ||

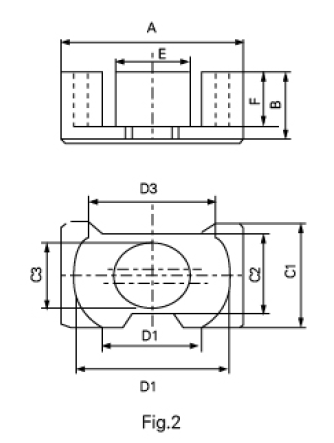

ATQ27 | Fig.2 | 27.0±0.5 | 7.25±0.125 | 22.5±0.5 | 17.3±0.4 | 14.2±0.25 | 23.2±0.5 | 15.0±0.5 | 19.0±0.5 | 11.2±0.25 | 4.35±0.15 | 26.5 |
型號 | 有效參數 | AL值AL(nH/N2) | |||||
C1(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | GP4 | GP47 | GP95 | |
ATQ21 | 44.6 | 60.2 | 2684.9 | 3200±25% | |||
ATQ23.7 | 0.371 | 38.2 | 103 | 3934.6 | 5800±25% | 7200±25% | |
ATQ27 | 43 | 131.5 | 5654.5 | 6900±25% |
